Guangzhou Micro-shot Technology Co., Ltd

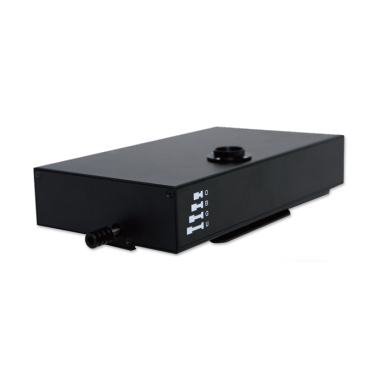

LED fluorescence attachment for inverted microscope MI-LED series

MI-LED is a fluorescence attachment in LED light source, it is used to upgrade inverted biological microscope to fluorescence microscope. Special with built-in color LED lamps and fluorescence filters, the illuminator is well fit to Olympus inverted microscope for live cell. On purpose of user friendly , the products is lightweight and small volume. Digital screen shows and remember each channel light intensity from 0~100%.

Features

• Compact design of all in one unit

• Continuously adjustable brightness with rotatable knob

• No need preheating or cooling, open to use

• Digital screen shows and remember each channel light intensity

• One-stop operation of light source synchronous switching with filter groups

• No required of external or added power supply

• Safety, environment friendly and human friendly

• Coated precision-cast aluminium with vented design

• CE, FCC, EMC, EU, ISO certified

Main applications

• Embryology

• IVF

• Live cell

• Genetics Andrology

• Cell biology

• Neurosicence

• Sperm analysis

Models

Item No.	LED lamps	Filter Groups	Compatible microscopes
MI-BG-LED MI-BY-LED	Blue and Green Blue and Yellow	Blue and Green Blue and Yellow	Olympus CKX41 Olympus CX53 Olympus IX50/70 Olympus IX51/71 Olympus IX53/73
MI-BGU-LED MI-BYU-LED	Blue, Green and UV Blue, Yellow and UV	Blue, Green and UV Blue, Yellow and UV

Standard Specification

Model	LED lamp	Filter wavelength			Mainly Applied Fluorochrome
		Excitation filter	Dichroic mirror	Emission filter
B	Blue	480/30nm	505nmLP	535/40nm	GFP/ FITC /EGFP/ Malaria / Alexa 488 / Cy2@/Fluo-4 / FluorX@ / Fluoro-Jade
G	Green	540/25nm	565nmLP	605/55nm	PI / EB / EH /TRITC
Y	Yellow	560/40nm	600nmLP	610nmLP	Mcherry/TexasRed/Alexa Fluor 594
U	UV	350/50nm	400nmLP	460/50nm	DAPI/Alexa 350/Hoechst 33342&33258 /AMCA/
					AMCA-X
Remark*	Olympus CX41 UV excitation only can be long-pass filter
Light source	Blue &UV: 3W LED cold lamp for each filter group Green / Yellow: 5W LED cold lamp for each filter group
Observation	Fluorescence
	Bright field & phase contrast by microscope original lighting
Operation	Lever : B, G/Y, UV/O
Power control	Rota-table knob, continuously adjustable brightness
Digital screen	Show and remember light intensity
Input power	DC 12V 2A
Light baffle	Orange color plastic light baffle

Optional Filters & Lamps

LED	Filter type	Excitation filter	Dichroic mirror	Emission filter	Remark
Blue	Long-pass	480/40nm	505nmLP	520nmLP	Olympus CX41 UV excitation only can be long-pass filter
Green	Long-pass	530/40nm	570nmLP	590nmLP
Yellow	Band-pass	560/40nm	600nmLP	635/60nm
UV	Long-pass	360/50nm	400nmLP	420nmLP
Violet	Long-pass	400/40nm	430nmLP	460nmLP
