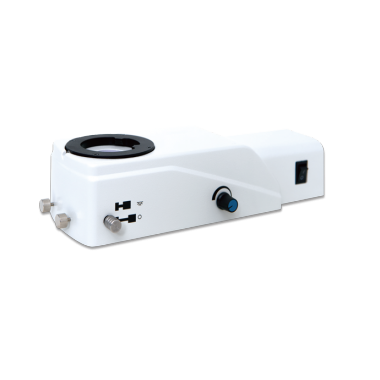

MF-LED single-channel series LED fluorescence attachment features with built-in color LEDs as light source. Providing friendly fluorescence upgrade solution for basic fluorescence microscope users. By the modular illumination you can easily upgrade a traditional infinity upright biological microscope to fluorescence functional. It is compatible with laboratory microscopes Olympus, Nikon, Leica, Zeiss and others.
FeaturesCompact design of all in one unit
Continuously adjustable brightness with rotatable knob
No need preheating or cooling, open to use
One-stop operation of light source synchronous switching with filter groups
No required of external or added power supply
Safety, environment friendly and human friendly
CE, FCC, EMC, EU, ISO certified
Botany
Clinical diagnose
Immnuofluorescence
Tuberculosis sputum slide
Skin and foot fungus
Food microorganism
Respiratory disease
Sperm analysis
Fluorochrome stained slide
Models
| Item No. | LED lamps | Filter Groups | Compatible microscopes |
| MF-B-LED | Blue | Blue | Olympus CX/BX Nikon Eclips/E100/E200/Ci-L Leica DM500/DM750/DM1000 Zeiss PrimoStar /A1 Sunny EX30 Motic BA310/Panthera C |
| MF-RB-LED | Royal blue | Royal blue | |
| MF-G-LED | Green | Green | |
| MF-Y-LED | Yellow | Yellow | |
| MF-UV-LED | UV | UV |
Standard Specification
| Model | LED lamp | Filter wavelength | Recommend Application | ||
| Excitation | Dichroic mirror | Emission | |||
| B | Blue | 475/40nm | >500nm | 535/45nm | GFP / FITC /EGFP/ Malaria diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade |
| RB | Royal blue | 420-480nm | >500nm | 510nmLP | Tuberculosis Diagnostic |
| G | Green | 525/45nm | >560nm | 595/60nm | PI / EB / EH |
| Y | Yellow | 560/40nm | >600nm | 610nmLP | mCherry / Texas Red / AlexaFluor 594 |
| U | UV | 330-380nm | >400nm | 420nmLP | DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350 |
| Light source | Blue / UV: 3W LED cold lamp for each filter group Green / Yellow : 5W LED cold lamp for each filter group | ||||
| Observation | Fluorescence | ||||
| Bright field & phase contrast by microscope original lighting | |||||
| Operation | Lever control B/G(Y)/U(O) | ||||
| Power control | Rota-table knob, continuously adjustable brightness | ||||
| Input power | 12V 2A | ||||
| Light baffle | Orange color plastic light baffle | ||||
| Remark* | Single excitation mode are long pass filter | ||||
Optional Filters & Lamps
| LED | Filter type | Excitation filter | Dichroic mirror | Emission filter | Remark |
| Blue | Long-pass | 460-490nm | >500nm | 510nmLP | Chroma filters are optional |
| Green | Long-pass | 510-550nm | >570nm | 590nmLP | |
| Yellow | Band-pass | 560/40nm | 600nmLP | 635/60nm | |
| UV | Band-pass | 350/50nm | >400nm | 460/50nm | |
| Violet | Long-pass | 400/40nm | 430nmLP | 460nmLP |
